Replacement Parts

All Spec Point Systems replacement parts fit the Honeywell UVH Series ammonia detector.

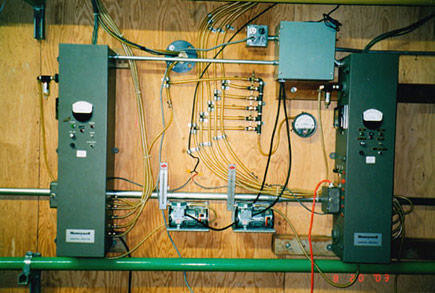

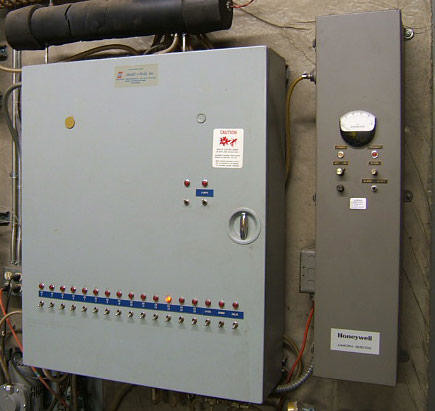

Honeywell UVH Typical Install 2 Typical Install 1



UV Source Tubes UV Source Tubes PN 50034E

Replaces Honeywell ADL 50034A

Specpoint tubes are newly designed with the finest quality materials and craftsmanship. The performance of these tubes is far superior to their Honeywell predecessors.

UV Detector Tube PN 124932H UV Detector Tube PN 124932H

Replaces Honeywell ADL 124932A

Specpoint tubes are newly designed with the finest quality materials and craftsmanship. The performance of these tubes is far superior to their Honeywell predecessors.

UV Amplifier

UV Amplifier Printed Circuit Board PN 50013A-B.5

Replaces Honeywell ADL 50013A

Comparison tests with the old style boards prove this new design to be far superior in performance and stability.

Features:

  • Isolated detector and source high voltage power supplies.
  • Isolated low voltage power supplies.
  • 4 to 20 MA output feature.
  • Selectable course zero function
  • Source tube current monitoring
  • Premium quality double sided green board.
  • All resistors (mill spec) 1% HV rated.
  • Withstands instrument supply voltage variations (95 volts to 145 volts).
  • Accuracy +/- 1.0% of range.
  • Repeatability +/- .5%.
  • Warm up drift negligible.
  • Operating temperature 32-125F.
  • Relative humidity 0% -90% non-condensing.
UV Alarm Control UV Alarm Control Printed Circuit Board PN 50012A-B.1

Replaces Honeywell ADL 50012A

These boards are newly redesigned and updated to meet the latest performance specifications.

Parts List Parts List Click on the image to the left to download a copy of our current price list in Adobe Acrobat format (PDF). If your computer does not have Adobe Acrobat reader, please click here.
