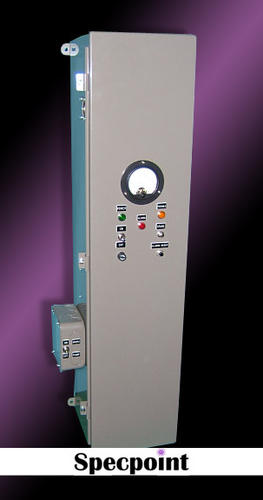

Overview

• Features high performance U.V. sensing technology
• The industry's most reliable and accurate with over 10,000 systems operating worldwide
• Exclusive 100% passive sampling
• Closed or open process sampling
• No electrochemical sensor cell to replace

Specifications*

• Accuracy +/- .50% of range
• Repeatability +/- .10% of range
• Measurement Ranges:
  • 0-50 PPM
  • 0-100 PPM
  • 0-200 PPM
  • 0-500 PPM NH3
• Display type analog meter (digital optional)
• PV out: 4-20 ma or 1-5 vdc
• One alarm trouble relay S.P.S.T. 5 amps / 120 vac
• One alarm relay 3.P.D.T. 5 amps / 120 vac
• Power requirement: 120 volt AC 60HZ 10 VA
• Sample flow requirement: 5-25 SCFH
• Dimensions: 8"l x 8"w x 36"h
• Electrical Enclosure: NEMA 12
• UL CSA (Pending)
• Optional Feature: Multi-point sample sequencer (up to 8 zones)

*Manufacturer reserves the right to change specs without notice

Applications

• Cold Storage and Controlled Atmosphere (CA) warehouse ammonia detection
• Mechanical room ammonia detection
• Process monitoring of ammonia
• Specialized industry solutions
• Detection of other gases (Contact us for details)

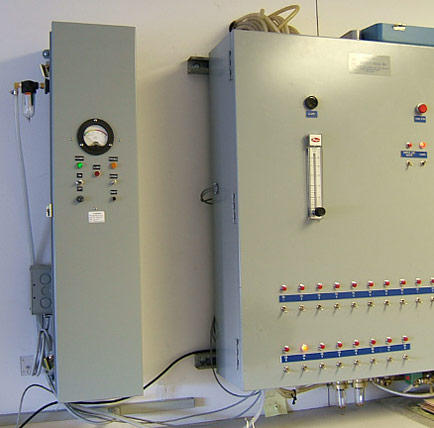

Typical Install for UVH 20 A (0-50 ppm) CA Room Application

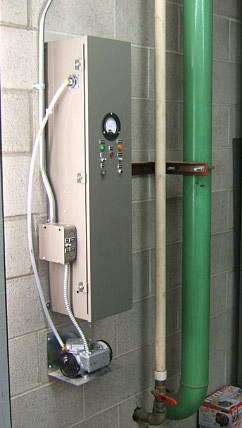

Typical Install for UVH 20 C (0-200 ppm) Compressor Room Application

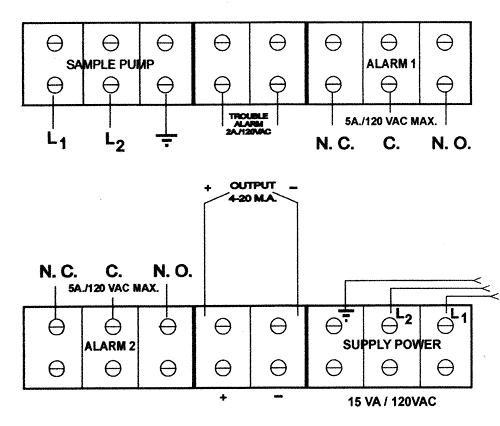

Wiring Diagram

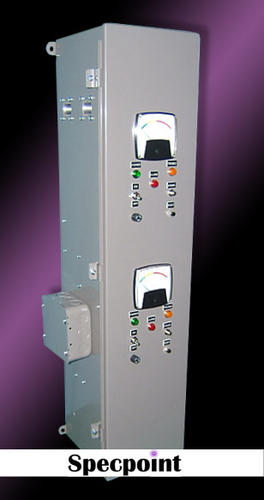

Overview

• Features high performance U.V. sensing technology
• The industry's most reliable and accurate with over 10,000 systems operating worldwide
• Exclusive 100% passive sampling
• Closed or open process sampling
• No electrochemical sensor cell to replace

Specifications*

• Dual-range, same, or mixed-range
• Accuracy +/- .50% of range
• Repeatability +/- .10% of range
• Measurement Ranges:
  • 0-50 PPM
  • 0-100 PPM
  • 0-200 PPM
  • 0-500 PPM NH3
• Display type analog meter (digital optional)
• PV out: 4-20 ma or 1-5 vdc
• One alarm trouble relay S.P.S.T. 5 amps / 120 vac
• One alarm relay 3.P.D.T. 5 amps / 120 vac
• Power requirement: 120 volt AC 60HZ 10 VA
• Sample flow requirement: 5-25 SCFH
• Dimensions: 8"l x 8"w x 36"h
• Electrical Enclosure: NEMA 12
• UL CSA (Pending)
• Optional Feature: Multi-point sample sequencer (up to 8 zones)

*Manufacturer reserves the right to change specs without notice

Applications

• Cold Storage and Controlled Atmosphere (CA) warehouse ammonia detection
• Mechanical room ammonia detection
• Process monitoring of ammonia
• Specialized industry solutions
• Detection of other gases (Contact us for details)

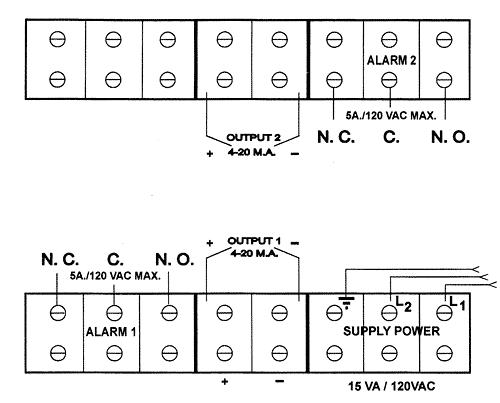

Wiring Diagram
